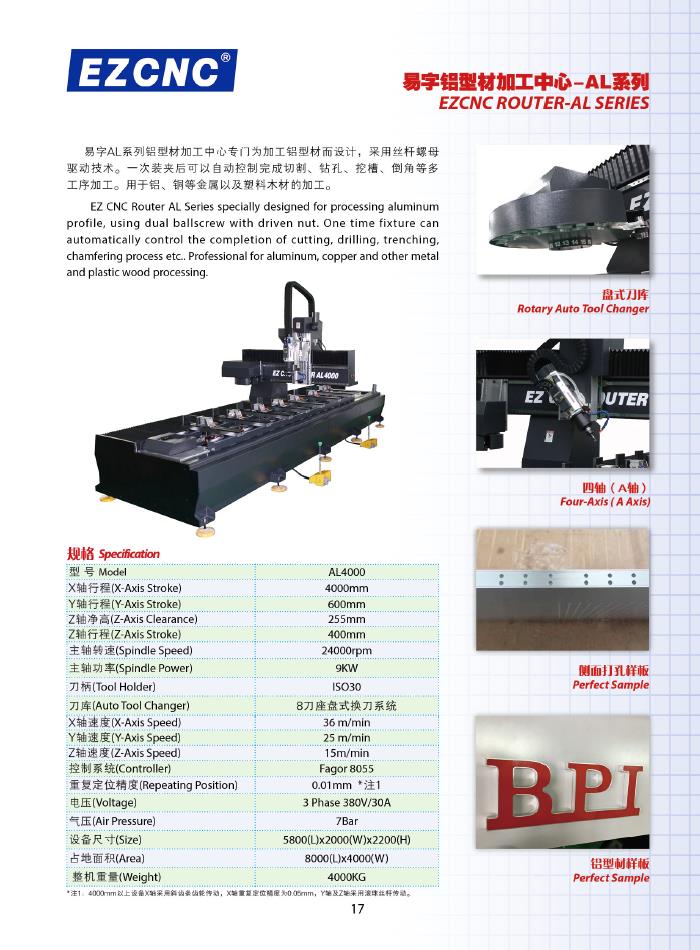

EZCNC Router AL series is designed for processing aluminum profile.

Product Video
Product Inquiry
Related Products
Product Summary

EZCNC Router AL series is designed for processing aluminum profile, using dual ballscrew with driven nut. One time fixture can automatically control the completion of cutting, drilling trenching, chamfering process etc.. Professional for aluminum , copper and other metal and plastic, wood processing.

Standard Configuration
1.Adopt HSD 9kw 24000rpm spindle from Italy.
2.Adopt servo disk autochange tools system.
3.Ballscrew with Driven Nut in X/Y-Axis.
4.The 16mm ball screw is supported by precision dual angular contact ball bearings in a steel housing.
5. The control system adopts Spanish FAGOR 8055 high-grade control system , which is further developed with hard disk, network and serial port DNC
6.Automatic tool setting instrument imported from Japan
7.Pneumatic positioning and clamping system
8.Servo motor system is from Japan.
Control System

 FAGOR 8055 Control System:

fage

Home

Multiple Home Offsets and rapid set zero surface

Interpolation

Linear, circular, helical

Tangential control

Compensations

Tool length and radius

Graphics

Tool path

3D simultaneous views (with depth simulation)

Operation related

Simulation with execution time estimate

Look-ahead of N blocks to avoid tool collision

Programming related functions

Feedrate as an inverted function of time

Profile editor

Communications related functions

Ethernet TCP-IP protocol.

Opto-coupled RS-232 serial line (115,200 baud).

DNC (DNC communications)

Telediagnosis

2G HD

Compact flash of up to 2 Gb with flash memory to store user programs, OEM programs, PLC programs, customizing programs, parameter tables, etc.

Gantry Axis

The 8055 CNC can govern up to 7 axes and 2 spindles. Block processing time of 1.5 ms may be obtained with it, it analyzes the tool path 75 blocks in advance (look ahead) and it allows smoothening the tool path by applying the right acceleration control (Jerk control).





Specification
Model AL4000
Control system Fagor  8055
X Axis Stroke 4000mm
Y Axis Stroke 600mm
Z Axis Clearance 255mm
Z Axis Stroke 400mm
Spindle Power 9KW
Spindle speed 24000rpm
Tool Holder ISO30
Auto Tool Changer 8 Holder Servo Disc ATC
Speed(X Axis) 36m/,in
Speed(Y Axis) 25m/,in
Speed(Z Axis) 15m/min
Repeating Position 0.01min *
Voltage 3 Phase 380V/30A
Air Pressure 7bAR
Weight(KG) 4000

*Drive by rack and pinion if the length of X axis if more than 4000mm,the repeating position is 0.05mm,Y-axis and Z-axis is ball screw.

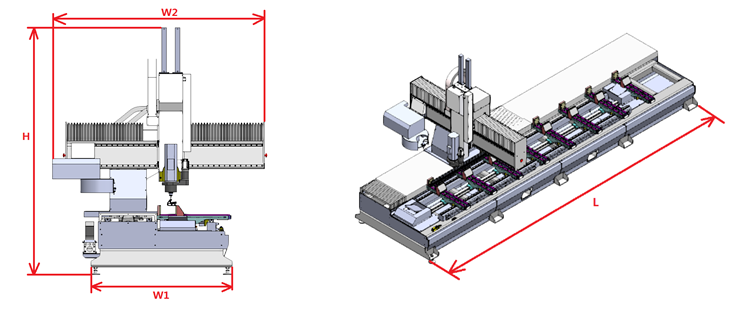

Dimensions

al4000chicun

Model L(MM) W1(MM) W2(MM) H(MM)
AL4000 5690 1580 2375 2685

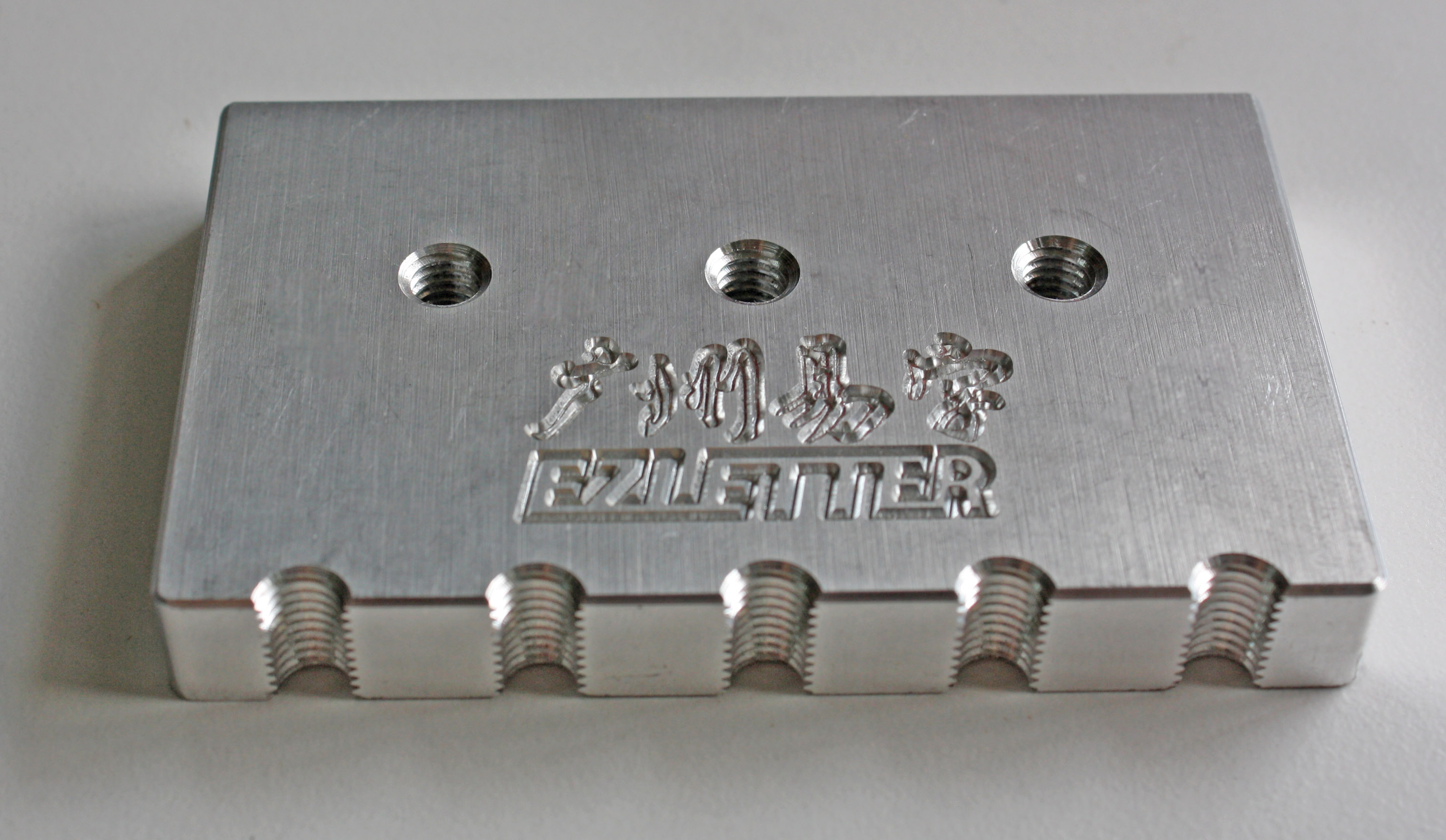

Applications
