EZTRIMMER

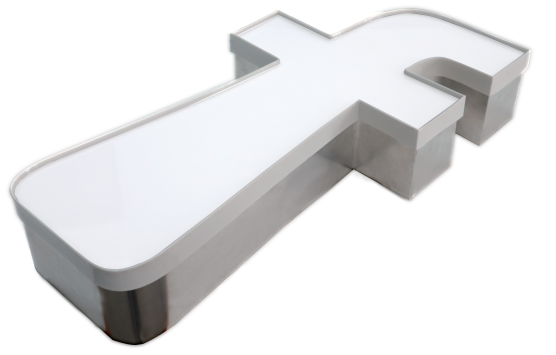

EzTrimmer is a machine specially to do slotting for the Trim cap. It’s more simple than EzBender-X and the cost is much lower.For some customers who only make trim cap and never to do Aluminum profiles, it is a very economical choice. EzTrimmer is always used along with the EzBender-Classic to make the surface cover of the channelletters.
Product Inquiry
Related Products
Product Overview
EzTrimmer is a machine specially to do slotting for the Trim cap. It’s more simple than EzBender-X and the cost is much lower.For some customers who only make trim cap and never to do Aluminum profiles, it is a very economical choice. EzTrimmer is always used along with the EzBender-Classic to make the surface cover of the channelletters.
Functions
Device Functions
| ■Disk blade can work both front and back sides. | ||||
| ■Specializing in v-slot for trimcap. | ||||
| ■Automatically v-slot for all outside corners. | ||||
| ■Make v-slot inside corners automatic. | ||||
| ■Lengths and distances are measured with exacting precision. | ||||
| ■V-Cut (disk blade):Any angle from 45° to 120° on edge. | ||||
| ■Make V-slot at the cut position. |
Specification
| Package size: | 1100(L)x1000(W)x1600(H) |
| Physical layout: | 1500(L)x850(W)x1530(H) |
| Gross weight: 280kg | Net weight: 200kg |
| Material specification | |
| Height: 20mm/26mm/50mm | Thickness: 1.0mm |

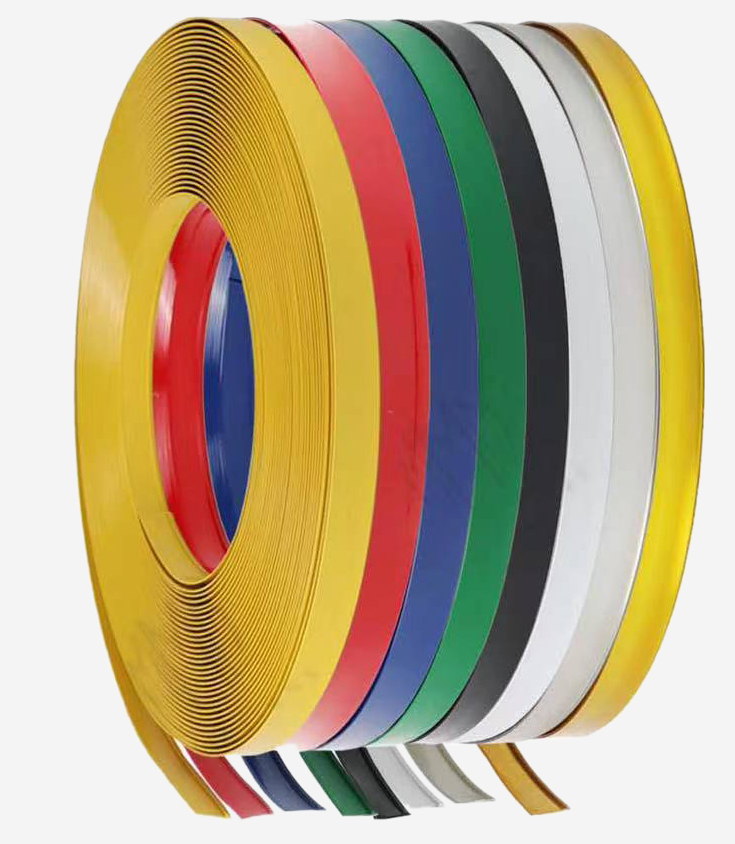

| Material: | Trim cap |
| Power | |
| Power | SP AC 220V/110V,50HZ OR 60HZ,15A |
| Compress Air: | 90psi (6bar) at 1cfm |
Size
| Model | L1 | L2 | W | H |
| EZtrimmer | 900 | 1500 | 850 | 1530 |
