The Ez Exchange Table Fiber Laser, was adopted the Swedish rack and pinion, Japan YASKAWA double servo drivers, Germany Alfa reducer. The precision will be great.The efficiency of auto exchangeable is high, the speed is fast. The running speed is 100 m/min without loading and the acceleration could reach 1.2G. There is IPG high power laser with the machine, it is a perfect product in metal cutting industry.

Brief description of mechanical structure
1. The gantry type structure is adopted, the table is motionless and the gantry frame moves;
2. The whole machine adopts welding rectangular tube and heavy reinforcement, finishing after stress relief treatment;
3. The frame adopts graphite protection and heat insulation to prevent the frame from deforming due to excessive heat during processing;
4. It adopts imported rack and pinion achieve transmission, Japan Yaskawa  double servo drive, imported reducer, acceleration can reach 1.2G.
5. The X axis adopts servo double drive technology.
6. Equipped with Yaskawa (YASKAWA) fully digital AC servo drive system, Z-axis drive with brake.
7. The whole machine adopts a flexible protective cover made of imported materials, which protects the rack and guide rail, and is not easy to be stained with chips, which may affect accuracy or damage.
8. Climbing type automatic exchange table

Brief description of electrical part
1. Imported flexible cable and fully enclosed drag chain system are adopted.
2. Other components in the electric cabinet adopt well-known brands such as YASKAWA.

Control System

Using the excellent CypCut laser cutting control system, which integrates file reading, design, output and processing control, the software can complete the whole process from design to processing. The software provides a wealth of laser cutting process parameters, flexible layout and tool path editing capabilities, introducing extraction, bridging, coedge, spot compensation, curve smoothing, splitting, merging, and automatically distinguishing internal and external mold functions. It provides  speed PWM real-time power adjustment, gradual perforation of explosion-proof holes and other special processes.

Automatic tracking system
1. The sampling rate is 1000 times per second.
2. The fastest following speed can reach 500 mm/s.
3. The static detection accuracy is 0.001 mm, and the dynamic response accuracy is 0.02 mm.
4. Support network communication, U disk online upgrade.
5. Support the alarm of touching the board and the alarm of missing the board, effectively preventing the accidental collision of the laser head.
6. Support edge detection and automatic edge finding and cutting, support leapfrog lifting, segment perforation, and arbitrary setting of lifting height.
7. One-button calibration process, the operation is quick, simple and convenient.

Laser and Cutting Head

1. Imported GW fiber laser, power is 4000W, has the characteristics of low cutting cost, good cutting quality, fast cutting speed and low maintenance cost.
2. WSX cutting head automatic tracking system, German technology, domestic assembly.
3. Two-zone ventilation and smoke exhaust system.
4. Precision stainless steel inner tank water cooler.

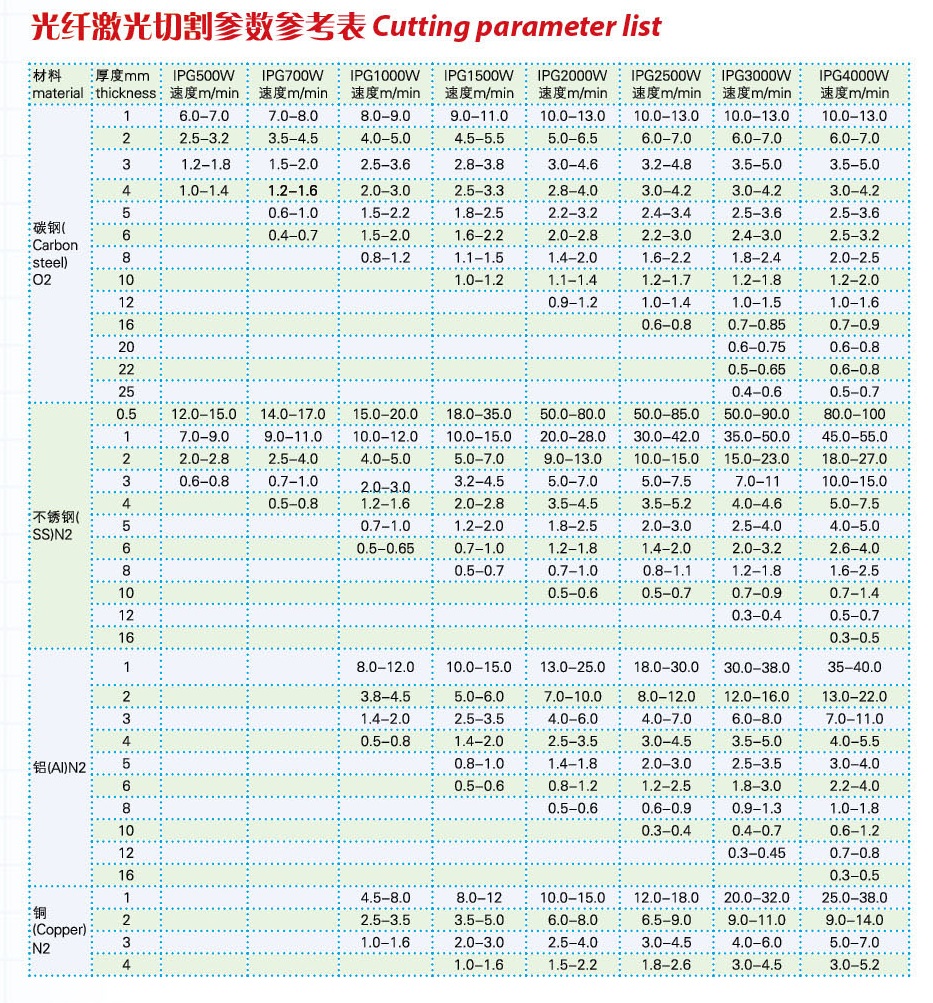

Model

GL1325-APC

GL1530-APC

Size(Work area)

1.27m x 2.54m

1.5m x 3.0m

Laser

WSX-NC-30/60

Laser Power

3-8KW

Laser Wave Length

1070nm

Controller

CypCut-CYP400

Auto-tracking

BCS100

X-dual Ballsrew

√

Servo

Yaskawa

Max Speed

100m/min

Z Clearnce

100mm

Controller

CypCut

Vacuum Zone

2

Cooling System

Industrial Cooling System

Positioning Accuracy

0.03mm

Weight

4T

5.3T

Power

380V/7KW

380V/9KW
